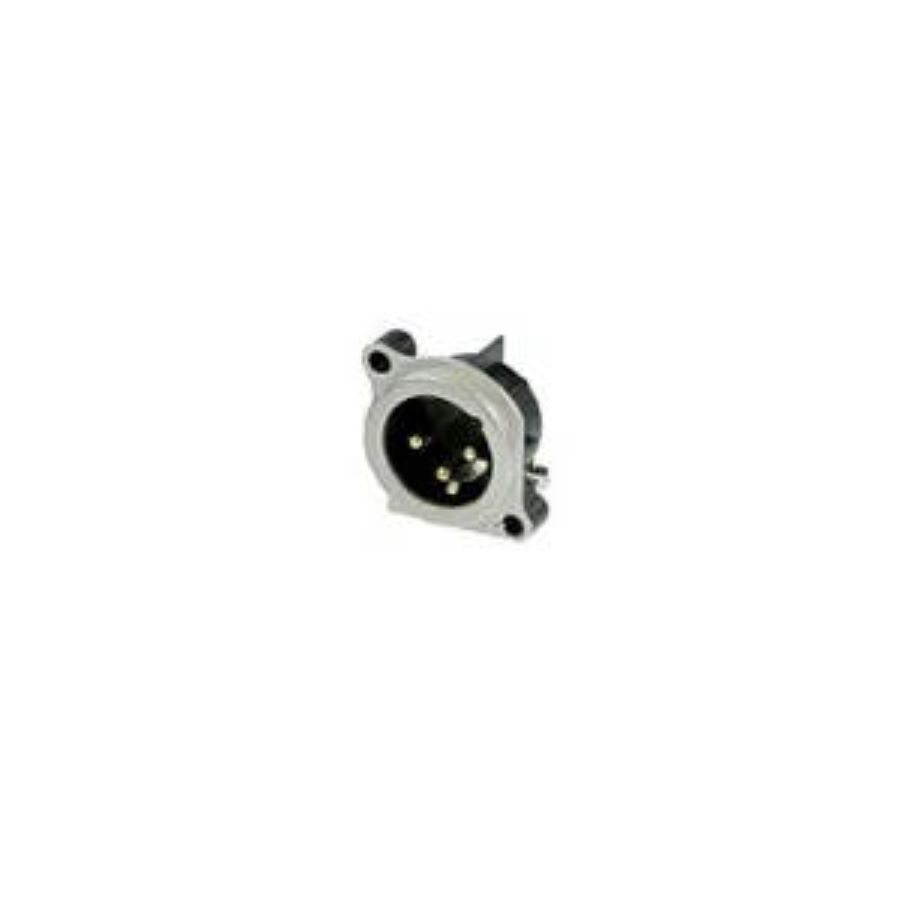

NC3MBH
Manufacturer:
Neutrik AG
Mfr.Part #:
NC3MBH
Datasheet:
Description:
Audio / Video Connectors Through Hole Male Number of Positions:3 Right Angle XLR Connectors
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 50 V |
| Length | 25 mm |
| Termination | Solder |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -30 °C |
| Number of Pins | 3 |
| Voltage Rating | 50 V |
| Depth | 22.2 mm |
| Ratings | IP40 |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Number of Terminals | 3 |
| Current Rating | 6 A |
| Orientation | Right Angle |
| Color | Silver |
| Gender | Male |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Housing Material | Polyamide |
| Number of Ports | 1 |
| Contact Gender | Male |
| Connector Type | XLR Connectors |
| Packaging | Bulk |
| RoHS | Compliant |
Stock: 5471
Distributors
pcbx
pcbxUnit Price$2.19204
Ext.Price$2.19204
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.19204 | $2.19204 |
| 10 | $2.13647 | $21.36470 |
| 25 | $2.02122 | $50.53050 |
| 50 | $1.91219 | $95.60950 |
| 100 | $1.80903 | $180.90300 |
| 300 | $1.80216 | $540.64800 |
| 500 | $1.79532 | $897.66000 |
| 1000 | $1.78851 | $1788.51000 |
| 3000 | $1.74962 | $5248.86000 |
| 5000 | $1.71157 | $8557.85000 |
| 10000 | $1.68421 | $16842.10000 |
